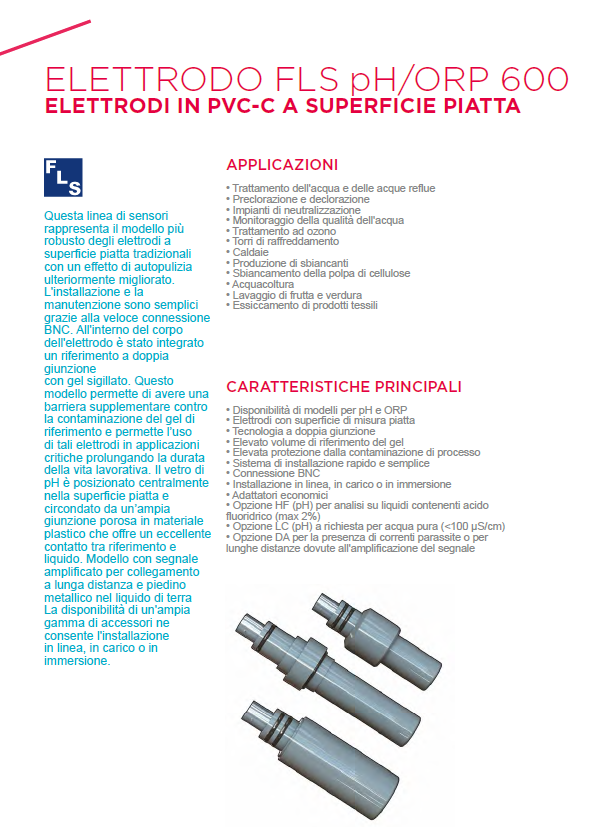

PH6XX CD
C-PVC body flat surface electrode.
C-PVC double junction Flat surface electrodes.
This line of FLS sensors constitutes the most robust model of traditional flat surface electrodes with a further enhanced self‑cleaning effect. Installation and maintenance are easy thanks to the fast BNC connection. A double‑junction reference with sealed gel has been integrated into the electrode body. This model enables an additional barrier against the contamination of the reference gel and allows the use of such electrodes in critical applications prolonging the duration of the working life. The pH glass is placed centrally in the flat surface and surrounded by a large porous plastic coupling that offers excellent contact between reference and liquid. Model with amplified signal is available for long‑distance connection and metal foot in ground liquid. The availability of a wide range of accessories allows for in‑line, flush‑mounted or immersion installation.
| Reference | product.detail.attribute.Characteristics | Operative Range | product.detail.attribute.Reference solution | product.detail.attribute.Detection surface | Cable* | Connection | Installation | Weight (gr.) |
|---|---|---|---|---|---|---|---|---|
| PH650CD | - | - | KCl 3.5 M | flat pH glass membrane | CN 653, CN 653 TC1 | Twist-lock (BNC) | MIFV20X05, MIMC20X05 | 100 |
| PH650CDDA | Signal amplified | Presence of stray currents | KCl 3.5 M | flat pH glass membrane | CN 653, CN 653 TC1 | Twist-lock (BNC) | MIFV20X05, MIMC20X05 | 200 |
| PH650CDHF | - | Liquids with Hydrofluoric acid (max 2%) | KCl 3.5 M | flat pH glass membrane | CN 653, CN 653 TC1 | Twist-lock (BNC) | MIFV20X05, MIMC20X05 | 100 |
| PH650CDLC | - | Liquids with lLiquids with low conductivity (10 μS/cm < conductivity < 100 μS/ cm) | KCl 0.1 M | flat pH glass membrane | CN 653, CN 653 TC1 | Twist-lock (BNC) | MIFV20X05, MIMC20X05 | 100 |
| PH655CD | With pressurized filling gel | - | KCl 3.5 M | flat pH glass membrane | CN 653 | Twist-lock (BNC) | WTF675, WTF675 TC1 | 100 |
| PH655CDHF | With pressurized filling gel | Liquids with Hydrofluoric acid (max 2%) | KCl 3.5 M | flat pH glass membrane | CN 653 | Twist-lock (BNC) | WTF675, WTF675 TC1 | 100 |
| PH655CDLC | With pressurized filling gel | Liquids with low conductivity (10 μS/cm < conductivity < 100 μS/ cm) | KCl 0.1 M | flat pH glass membrane | CN 653 | Twist-lock (BNC) | WTF675, WTF675 TC1 | 100 |
| PH660CD | - | - | KCl 3.5 M | flat pH glass membrane | CN 653 | Twist-lock (BNC) | EG66P, MK660 | 100 |
| PH660CDDA | Signal amplified | Presence of stray currents | KCl 3.5 M | flat pH glass membrane | CN 653 | Twist-lock (BNC) | EG66P, MK660 | 200 |
| PH660CDHF | - | Liquids with Hydrofluoric acid (max 2%) | KCl 3.5 M | flat pH glass membrane | CN 653 | Twist-lock (BNC) | EG66P, MK660 | 100 |
| PH660CDLC | - | Liquids with low conductivity (10 μS/cm < conductivity < 100 μS/ cm) | KCl 0.1 M | flat pH glass membrane | CN 653 | Twist-lock (BNC) | EG66P, MK660 | 100 |
* (Sold separately)
APPLICATIONS:
- Water and wastewater treatment
- Prechlorination and dechlorination
- Neutralisation systems
- Water quality monitoring
- Ozone treatment
- Cooling towers
- Boilers
- Production of hypochlorite solutions
- Cellulose pulp bleaching
- Aquaculture
- Fruit and vegetable washing
- Drying of textile products
MAIN CHARACTERISTICS:
- Availability of models for pH and ORP
- Electrodes with flat measuring surface
- Double coupling technology
- High reference gel volume
- High protection from process contamination
- Quick and easy installation system
- BNC connection
- In‑line, flush‑mounted or immersion installation
- Cost‑effective adapters
- HF (pH) option for analysis on liquids containing hydrofluoric acid (max 2%)
- LC (pH) option on request for low conductivity water (<100 μS/cm)
- DA option for the presence of eddy currents or for long distances thanks to signal amplification
