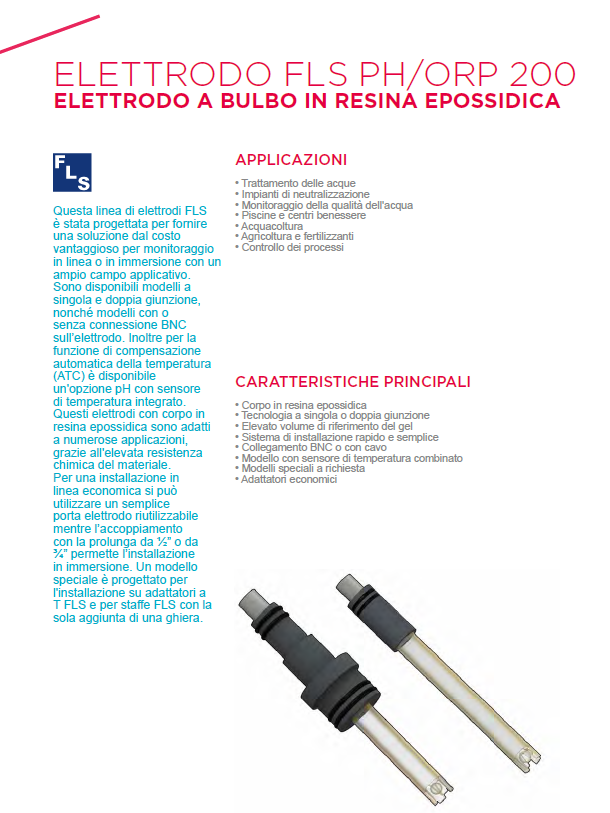

PH2XX
Epoxy body bulb electrode.
Bulb pH Electrodes with epoxy body.
This line of FLS electrodes has been designed to provide a cost‑effective solution for in‑line or immersion monitoring with a wide field of application. Single and double coupling models are available, as well as models with or without BNC connection on the electrode. A pH option with built‑in temperature sensor is also available for the Automatic Temperature Compensation (ATC) function. These electrodes with an epoxy resin body are suitable for numerous applications, thanks to the high chemical resistance of the material. For a cost‑effective in‑line installation, a simple reusable electrode holder can be used while the coupling with the ½” or ¾” extension allows immersion installation. A special model is designed for installation on FLS T adapters and for FLS clamp saddles with only the addition of a union nut.
| Reference | Features | product.detail.attribute.Applications/Operative Range | product.detail.attribute.Reference solution | Cable*** | Connection | O-ring | Installation | Weight (gr.) | Operative Range | product.detail.attribute.Reference solution |
|---|---|---|---|---|---|---|---|---|---|---|
| PH200C | Nylon/Single junction | 0-14 pH** | KCl 3,5 M | Not required | 5m (16,5 ft.) Cable | - | EG50P, EG75P, MK150200, MIFV20X05, MIMC20X05 | 200 | - | - |
| PH222CD | Nylon/Double junction | - | - | CN 653, CN 653 TC1 | Twist-lock (BNC) | silicone | EG50P, EG75P, MIFV20X05, MIMC20X05 | 90 | 0-14 pH** | KCl 3,5 M / KNO3 sat. |
| PH222CDTC | Nylon/Double junction | - | KCl 3,5 M / KNO3 sat. | Not required | 5m (16,5 ft.) Cable | - | EG50P, EG75P, MK150200, MIFV20X05, MIMC20X05 | 220 | 0-14 pH** | - |
| PH223CD | Nylon/Double junction | - | KCl 3,5 M / KNO3 sat. | CN 653 | Twist-lock (BNC) | - | With F3.SP2.4 plus FLS adaptors | 100 | 0-14 pH** | - |
**(0-12,3 pH without Na+ error)
*** (Sold separately)
APPLICATIONS:
- Water treatment
- Neutralisation systems
- Water quality monitoring
- Swimming pools and spas
- Aquaculture
- Agriculture and fertilizers
- Process control
MAIN CHARACTERISTICS:
- Epoxy resin body
- Single or double coupling technology
- High reference gel volume
- Quick and easy installation system
- BNC or cable connection
- Model with combined temperature sensor
- Special models on request
- Cost‑effective adapters
