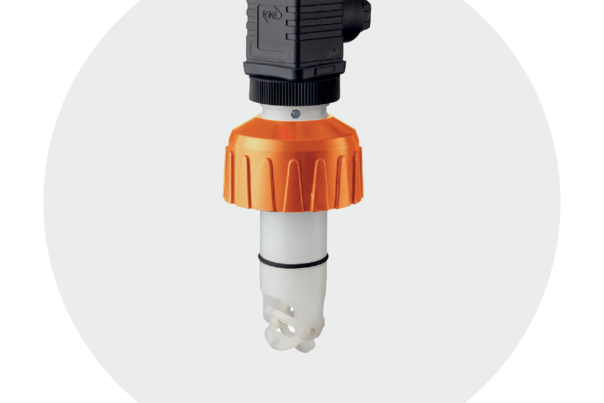

F6.50.XX

Paddlewheel Flow Transmitter

The new FLS F6.50 transmitter is a paddlewheel‑based device and can be used for measuring any type of solid‑free liquid. The F6.50 transmitter provides a 4‑20 mA current output and is equipped with a Bluetooth® connection for interaction with the Smart Connect FIP app, which allows the user to set the transmitter configuration and installation parameters and other features. The specific design guarantees accurate flow measurements over a wide range of pipe sizes, from DN15 (0.5") to DN600 (24").

Main features:

APPLICATIONS:

Water and industrial wastewater treatment
Water cooling systems
Swimming pools
Flow control and monitoring
Water treatment
Water regeneration plants
Processing and manufacturing industry
Water distribution

MAIN CHARACTERISTICS:

High chemical resistance
Pipe size range: DN15 (0.5”) to DN600 (24”)
Low pressure drop
Setting the functional parameters of the instrument and reading the proximity of the information detected during its use through the Smart Connect FIP application
4‑20 mA signal transmission via cable connection

Reference	Power supply	Lenght	Main Wetted Materials	Enclosure	Flow Rate Range	Weight (gr.)
F6.50.01	12 - 24 VDC	L0	C-PVC / EPDM	IP65	From 0,15 to 8 m/s*	250
F6.50.02	12 - 24 VDC	L0	C-PVC / FKM	IP65	From 0,15 to 8 m/s*	250
F6.50.03	12 - 24 VDC	L1	C-PVC / EPDM	IP65	From 0,15 to 8 m/s*	300
F6.50.04	12 - 24 VDC	L1	C-PVC / FKM	IP65	From 0,15 to 8 m/s*	300
F6.50.05	12 - 24 VDC	L0	PVDF / EPDM	IP65	From 0,15 to 8 m/s*	250
F6.50.06	12 - 24 VDC	L0	PVDF / FKM	IP65	From 0,15 to 8 m/s*	250
F6.50.07	12 - 24 VDC	L1	PVDF / EPDM	IP65	From 0,15 to 8 m/s*	300
F6.50.08	12 - 24 VDC	L1	PVDF / FKM	IP65	From 0,15 to 8 m/s*	300
F6.50.09	12 - 24 VDC	L0	SS316L / EPDM	IP65	From 0,15 to 8 m/s*	450
F6.50.10	12 - 24 VDC	L0	SS316L / FKM	IP65	From 0,15 to 8 m/s*	450
F6.50.11	12 - 24 VDC	L1	SS316L / EPDM	IP65	From 0,15 to 8 m/s*	500
F6.50.12	12 - 24 VDC	L1	SS316L / FKM	IP65	From 0,15 to 8 m/s*	500

* from 0,15 to 8 m/s = (0,5-25 feet/s)

General Information

Pipe size range : DN15 to DN600 (0.5-24”)
For more details, refer to the Installation Adapters section
Wireless connection standards: Bluetooth® 5.0 compatible with iOS and Android
Flow Range: 0.15 to 8 m/s (0.5-25 ft/s)
Linearity: ±0.75% of full scale
Repeatability: ±0.5% of full scale
Minimum Reynolds number required: 4.500
Protection class: IP65
Materials in contact with liquids:
- Sensor body:PVC-C, PVDF or AISI 316L stainless steel
- O-ring: EPDM or FKM
- Rotor: ECTFE (Halar®)
- Axis: Ceramic (Al2O3) /AISI 316 Stainless Steel (for metal sensors)
- Bearings: Ceramic (Al2O3) / absent (for metal sensors)
